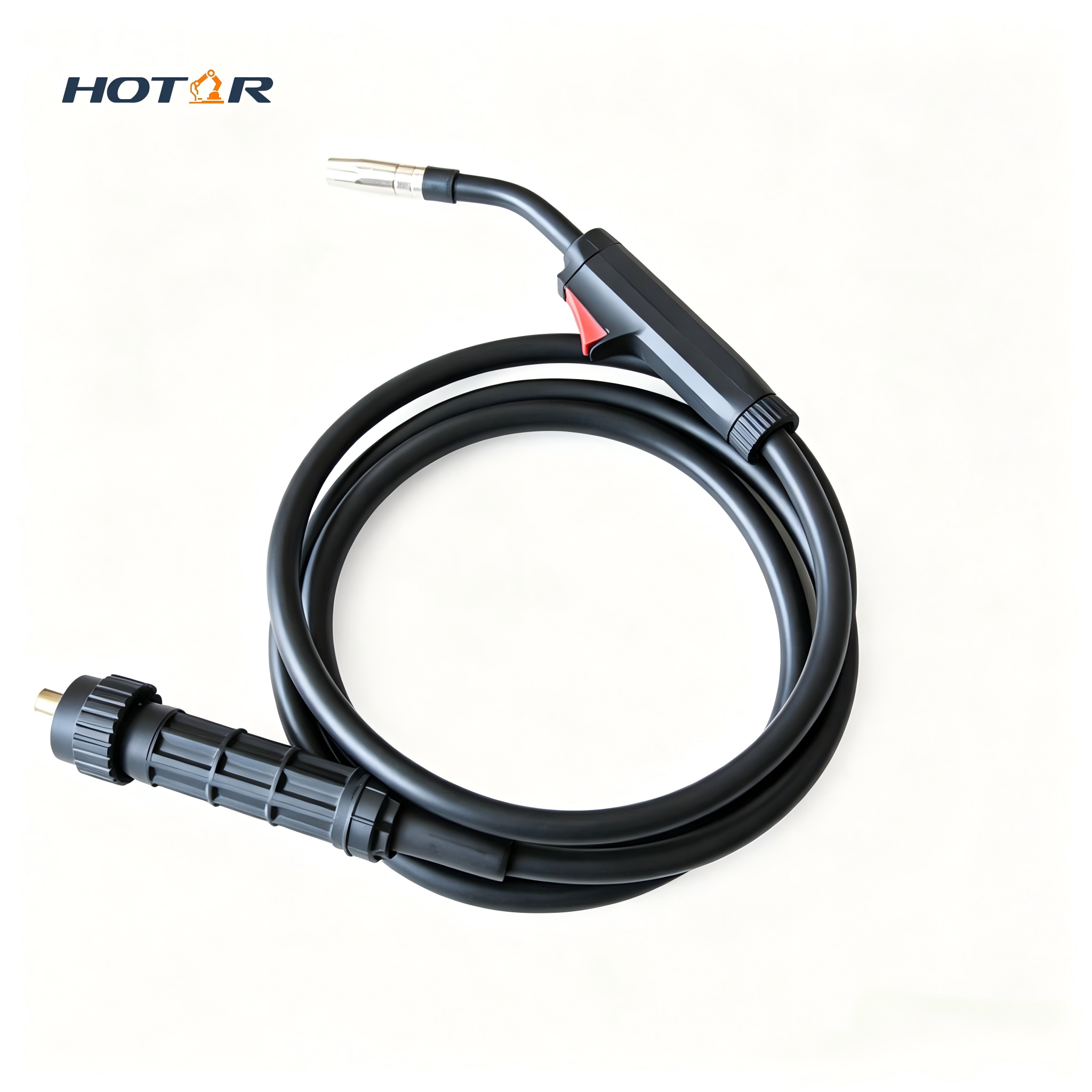

MIG/MAG HRMB15AK Air-Cooled CO2/Mixed Shielded Welding Torch
Description
Item | MIG/MAG HRMB23KD Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 200A CO2 /180A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.6-1.0 |
Rear Connector | Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
A2301 145.0047 | Nozzle Cylindrical |
A2302 145.0080 | Nozzle Conical |
A2303 145.0128 | Nozzle Tapered |
A2305 145.0174 | Nozzle Spot Welding |
Welding Contact Tip / Torch Tip | |
B2301 140.0005 | Contact Tip E-CU M6*28*0.6mm |
B2302 140.0051 | Contact Tip E-CU M6*28*0.8mm |
B2303 145.0169 | Contact Tip E-CU M6*28*0.9mm |
B2304 140.0242 | Contact Tip E-CU M6*28*1.0mm |
B2305 140.0379 | Contact Tip E-CU M6*28*1.2mm |
Welding Torch Liner | |
C2301 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
C2302 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
C2303 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
C2304 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
C2305 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
C2306 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
Welding Torch Spare Parts: Tip Holder, Swan Neck | |
D2301 | Tip Holder |
D2303 005.0003 | Swan Neck |
