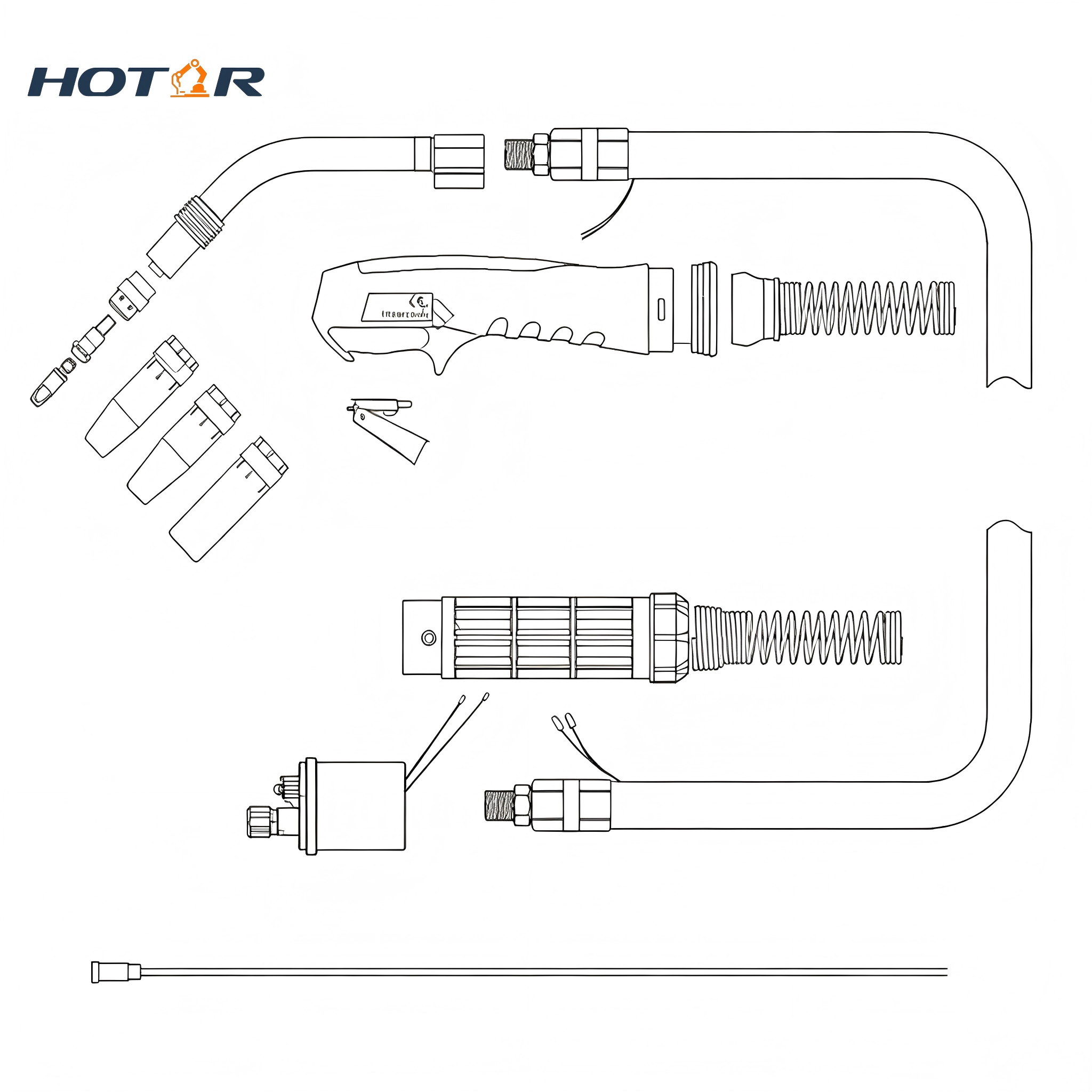

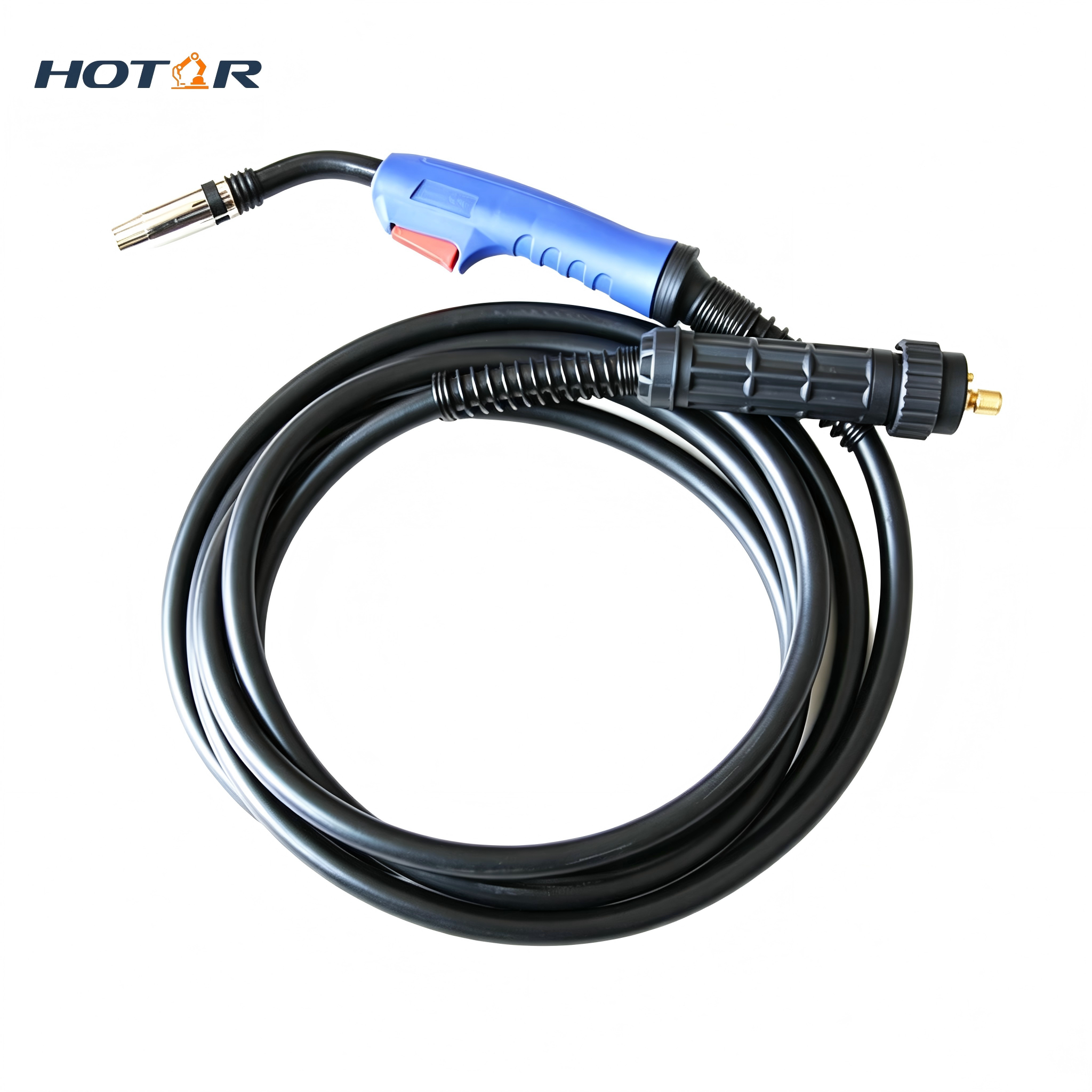

MIG/MAG HRMB24KD Air-Cooled CO2/Mixed Shielded Welding Torch
Description
Item | MIG/MAG HRMB24KD Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 250A CO2/ 220A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
Rear Connector | Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
A2401 145.0047 | Nozzle Cylindrical |
A2402 145.0080 | Nozzle Conical |
A2403 145.0128 | Nozzle Tapered |
A2404 | Nozzle Bottle |
A2405 | Nozzle Spot Welding |
Welding Contact Tip / Torch Tip | |
B2401 140.0005 | Contact Tip E-CU M6*28*0.6mm |
B2402 140.0051 | Contact Tip E-CU M6*28*0.8mm |
B2403 140.0169 | Contact Tip E-CU M6*28*0.9mm |
B2404 140.0242 | Contact Tip E-CU M6*28*1.0mm |
B2405 140.0379 | Contact Tip E-CU M6*28*1.2mm |
Welding Torch Liner | |
C2401 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
C2402 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
C2403 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
C2404 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
C2405 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
C2406 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
D2401 142.0003 | Tip Holder |
D2402 012.0183 | Gas Diffuser |
D2403 012.0001 | Swan Neck |
