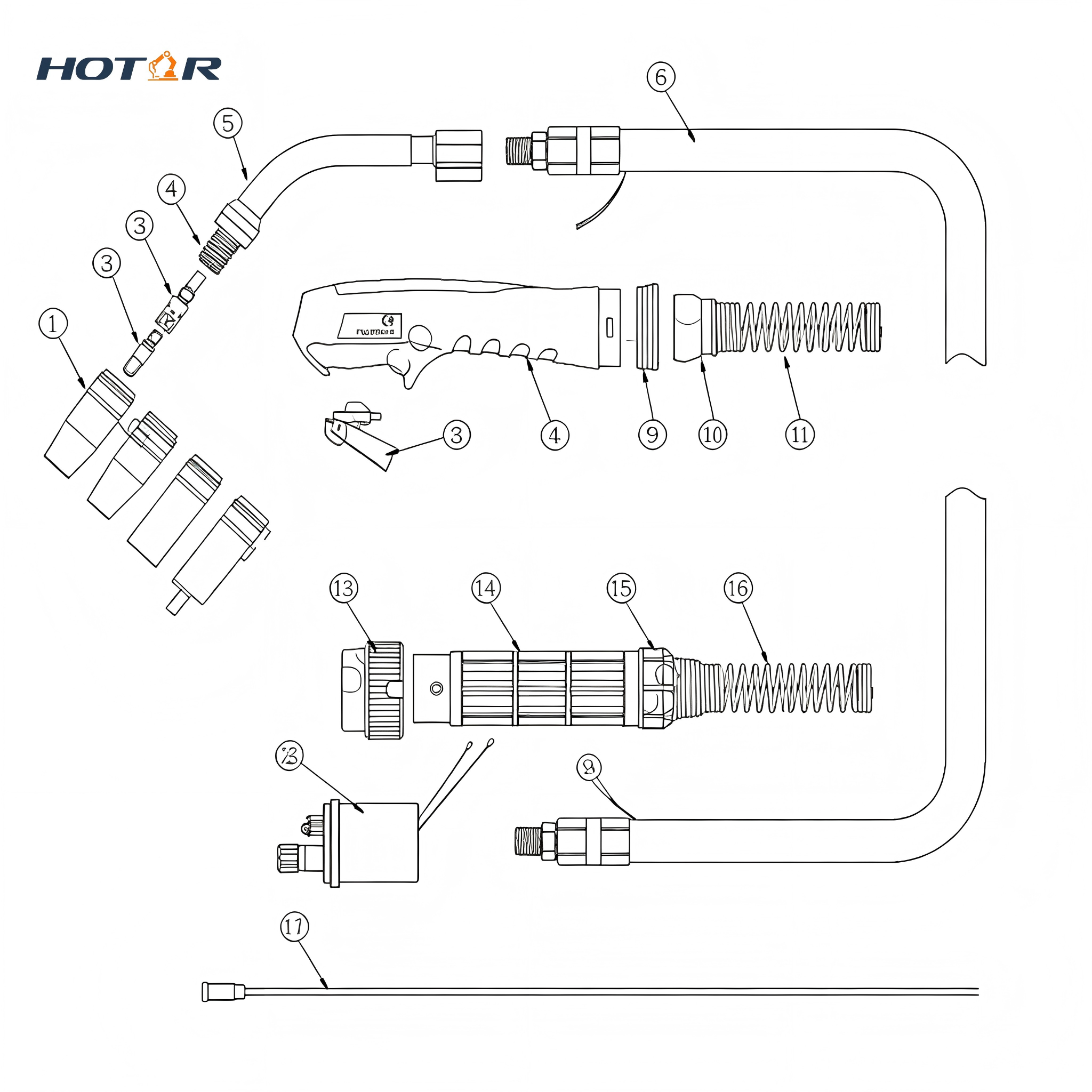

MIG/MAG HRMB25AK Air-Cooled CO2/Mixed Shielded Welding Torch
Description
Item | MIG/MAG HRMB25AK Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 230A CO2 /200A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
Rear Connector | Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
A2501 145.0042 | Nozzle Cylindrical |
A2502 145.0076 | Nozzle Conical |
A2503 145.0124 | Nozzle Tapered |
A2504 145.0144 | Nozzle Bottle |
A2505 145.0169 | Nozzle Spot Welding |
Welding Contact Tip / Torch Tip | |
B2501 140.0005 | Contact Tip E-CU M6*28*0.6mm |
B2502 140.0051 | Contact Tip E-CU M6*28*0.8mm |
B2503 140.0169 | Contact Tip E-CU M6*28*0.9mm |
B2504 140.0242 | Contact Tip E-CU M6*28*1.0mm |
B2505 140.0379 | Contact Tip E-CU M6*28*1.2mm |
Welding Torch Liner | |
C2501 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
C2502 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
C2503 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
C2504 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
C2505 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
C2506 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
D2501 142.0001 | Tip Holder |
D2502 003.0013 | Spring Support |
D2503 004.0012 | Swan Neck |
