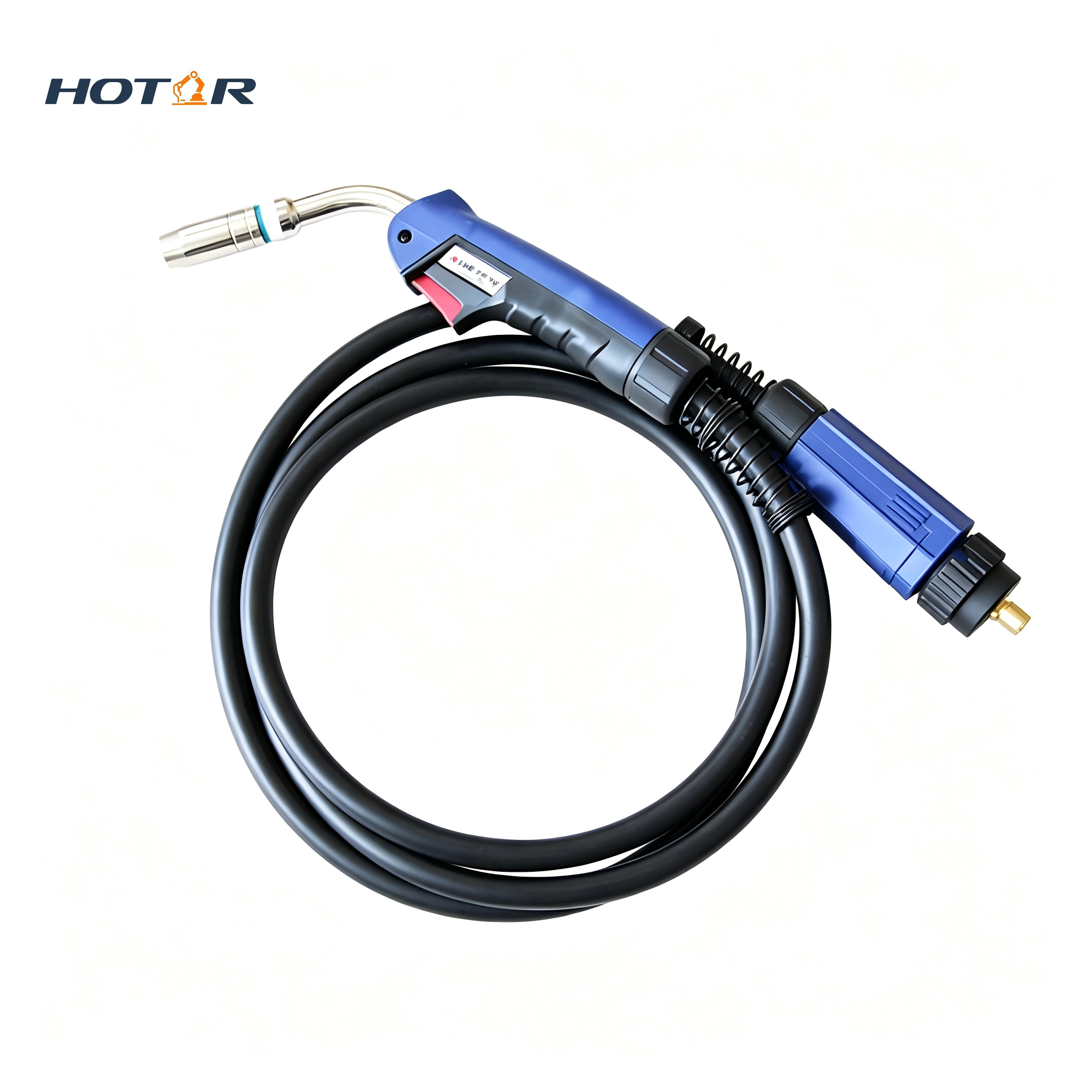

MIG/MAG HRMB36KD Air-Cooled CO2/Mixed Shielded Welding Torch
Description
Item | MIG/MAG HRMB36KD Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 340A CO2/ 320A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
Rear Connector | Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
A3601 145.0045 | Nozzle Cylindrical |
A3602 145.0078 | Nozzle Conical |
A3603 145.0126 | Nozzle Tapered |
A3604 145.0147 | Nozzle Bottle |
A3605 | Nozzle Spot Welding |
Welding Contact Tip / Torch Tip | |
B3601 140.0242 | Contact Tip E-CU M6*28*1.0mm |
B3602 140.0379 | Contact Tip E-CU M6*28*1.2mm |
B3603 140.0313 | Contact Tip E-CU M8*30*1.0mm |
B3604 140.0442 | Contact Tip E-CU M8*30*1.2mm |
Welding Torch Liner | |
C3601 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
C3602 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
C3603 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |

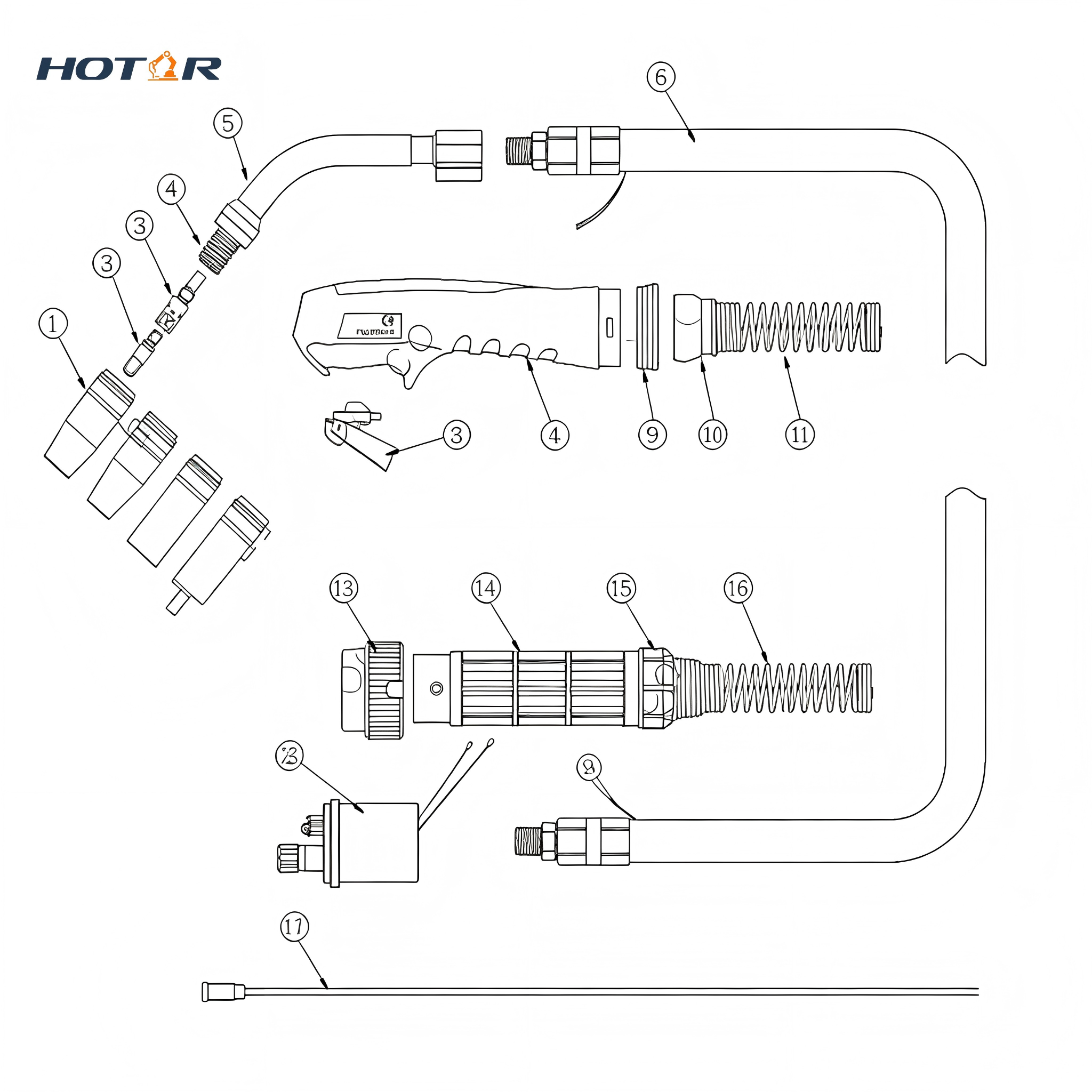

Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
D3601 | Tip Holder |
D3602 | Gas Diffuser |
D3603 998.0091 | Swan Neck |
