HRBN 400 Air-Cooled CO2
Description

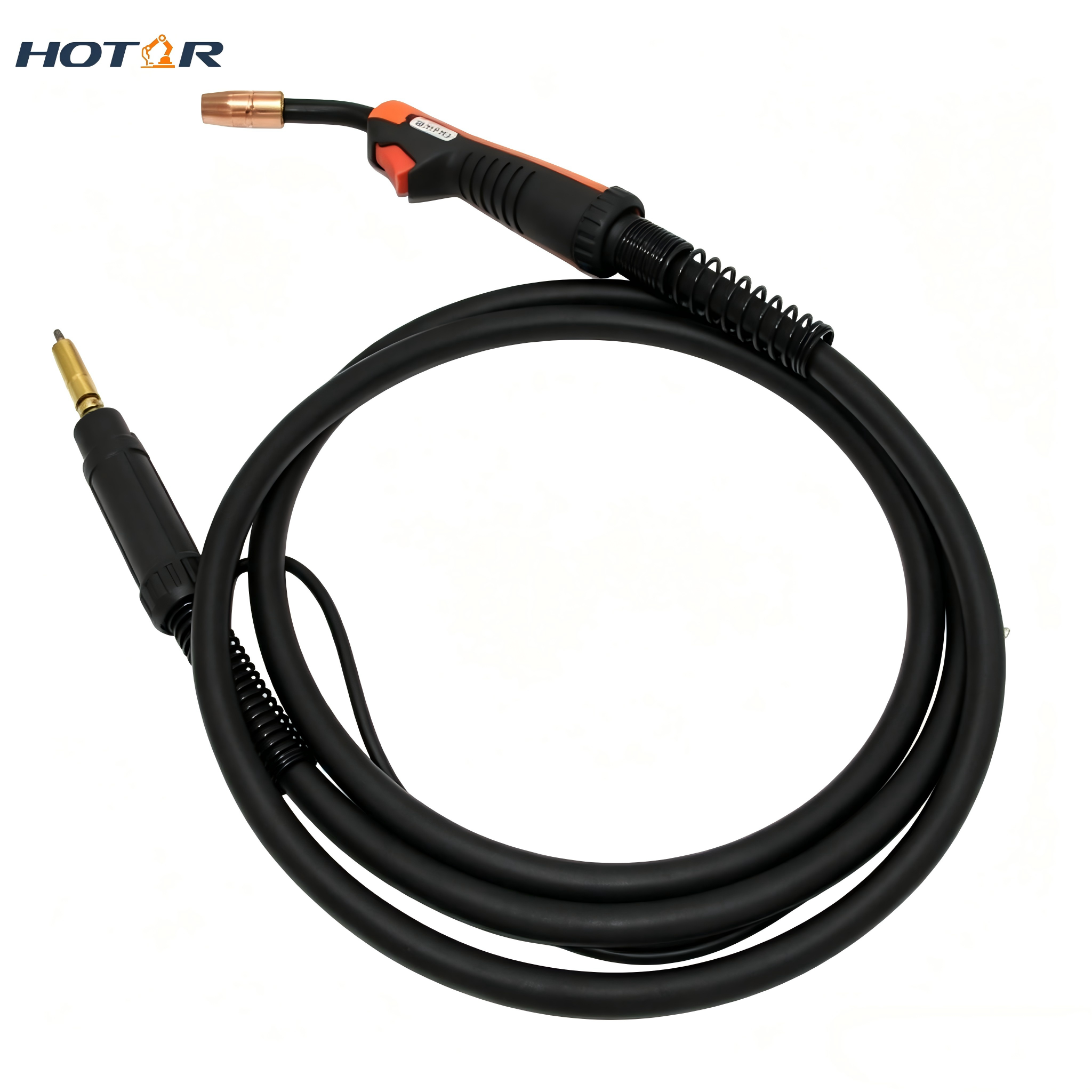

Item | MIG/MAG HRBN 400 Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 420A CO2/350A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.6mm |
Rear Connector | Bernard Connector, Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 torch nozzle | |
N-5818C | Nozzle ￠15.8 Copper STD. |
N-5818B | Nozzle ￠15.8 Brass |
Welding Contact tip / Torch tip | |
T-030 | Contact Tip E-CU 0.8mm |
T-035 | Contact Tip E-CU 0.9mm |
T-039 | Contact Tip E-CU 1.0mm |
T-045 | Contact Tip E-CU 1.2mm |
T-052 | Contact Tip E-CU 1.4mm |
T-062 | Contact Tip E-CU 1.6mm |
Welding Torch Liner | |
44110 | Steel Liner 1.2-1.6mm, 3m |
44115 | Steel Liner 1.2-1.6mm, 4.5m |

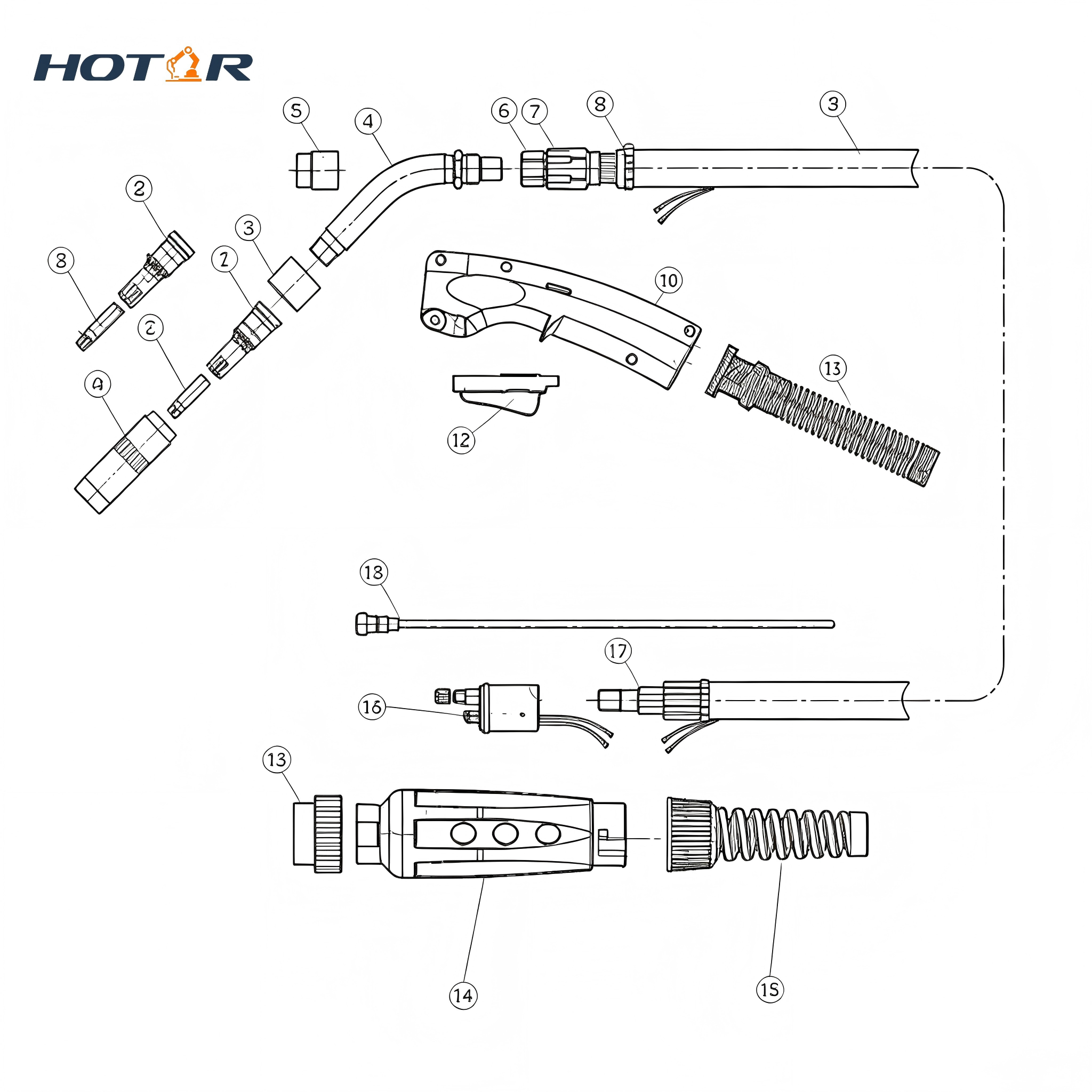

Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck, Insulator | |
1.D-1 | Tip Holder |
2.10012 | Insulator |
3.QT3-45 | Swan Neck |
4.HR1540003 | Torch Body Nut |
5.HR1880198 | Front Handle With Screws |
6.HR5662 | Switch, Yellow |
7.HR4313B | Torch Body |
