HRBN-500-Air-Cooled-CO2
Description

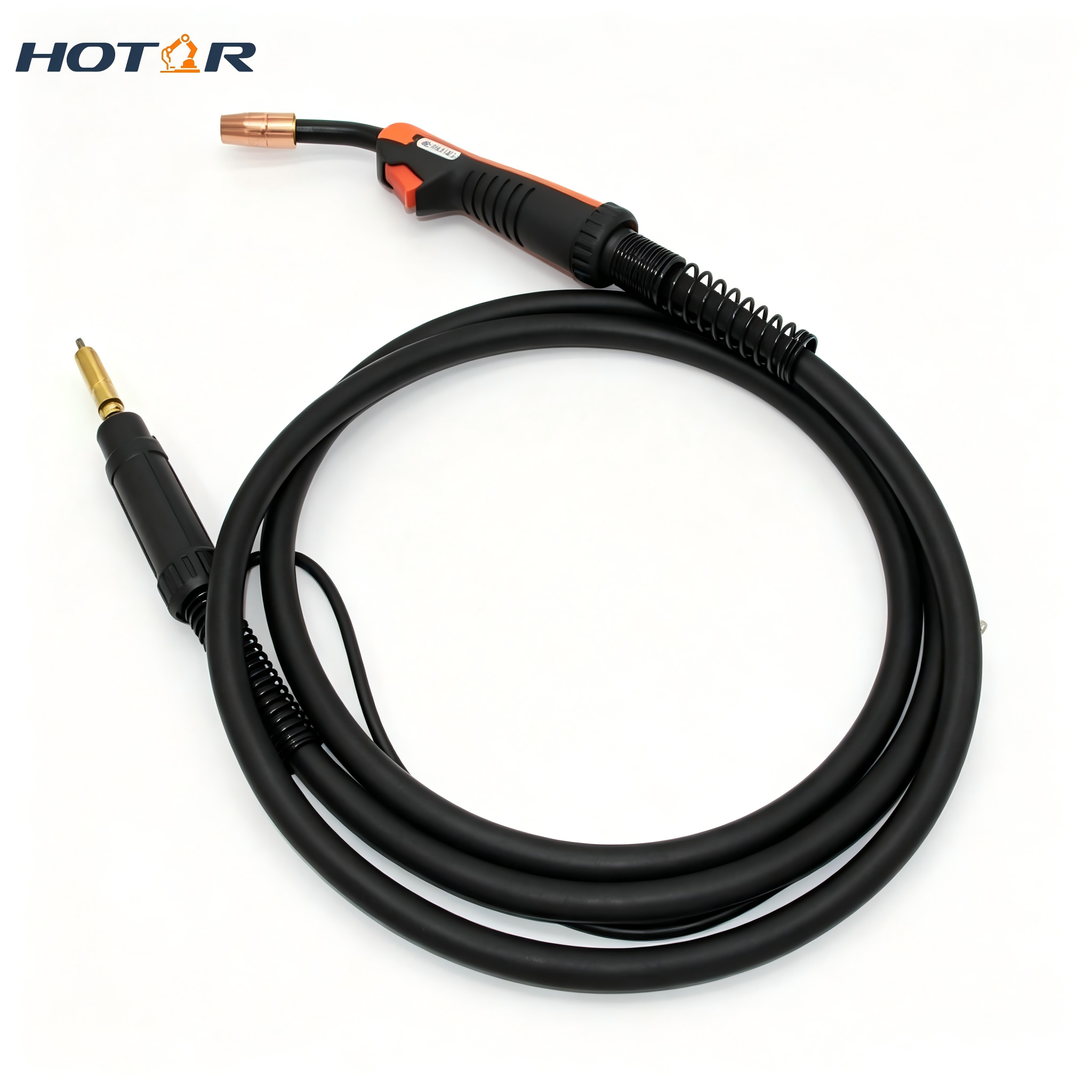

Item | MIG/MAG HRBN 500 Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 500A CO2/450A Mixed Gas, Duty Cycle 100% Wire Diameter: 0.8-2.8mm |
Rear Connector | Bernard Connector, Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 torch nozzle | |
4491 | Nozzle Brass3/4“ Bore |
4492 | Nozzle Brass1/2“ Bore |
4591 | Nozzle Copper3/4“ Bore |
4592 | Nozzle Copper1/2“ Bore |
Welding Contact tip / Torch tip | |
7488 | Contact Tip E-CU 0.8mm |
7489 | Contact Tip E-CU 0.9mm |
7496 | Contact Tip E-CU 1.0mm |
7490 | Contact Tip E-CU 1.2mm |
7498 | Contact Tip E-CU 1.3mm |
7491 | Contact Tip E-CU 1.6mm |
7492 | Contact Tip E-CU 2.0mm |
7493 | Contact Tip E-CU 2.4mm |
7494 | Contact Tip E-CU 2.8mm |
Welding Torch Liner | |
44110 | Steel Liner 1.2-1.6mm, 3m |
44115 | Steel Liner 1.2-1.6mm, 4.5m |

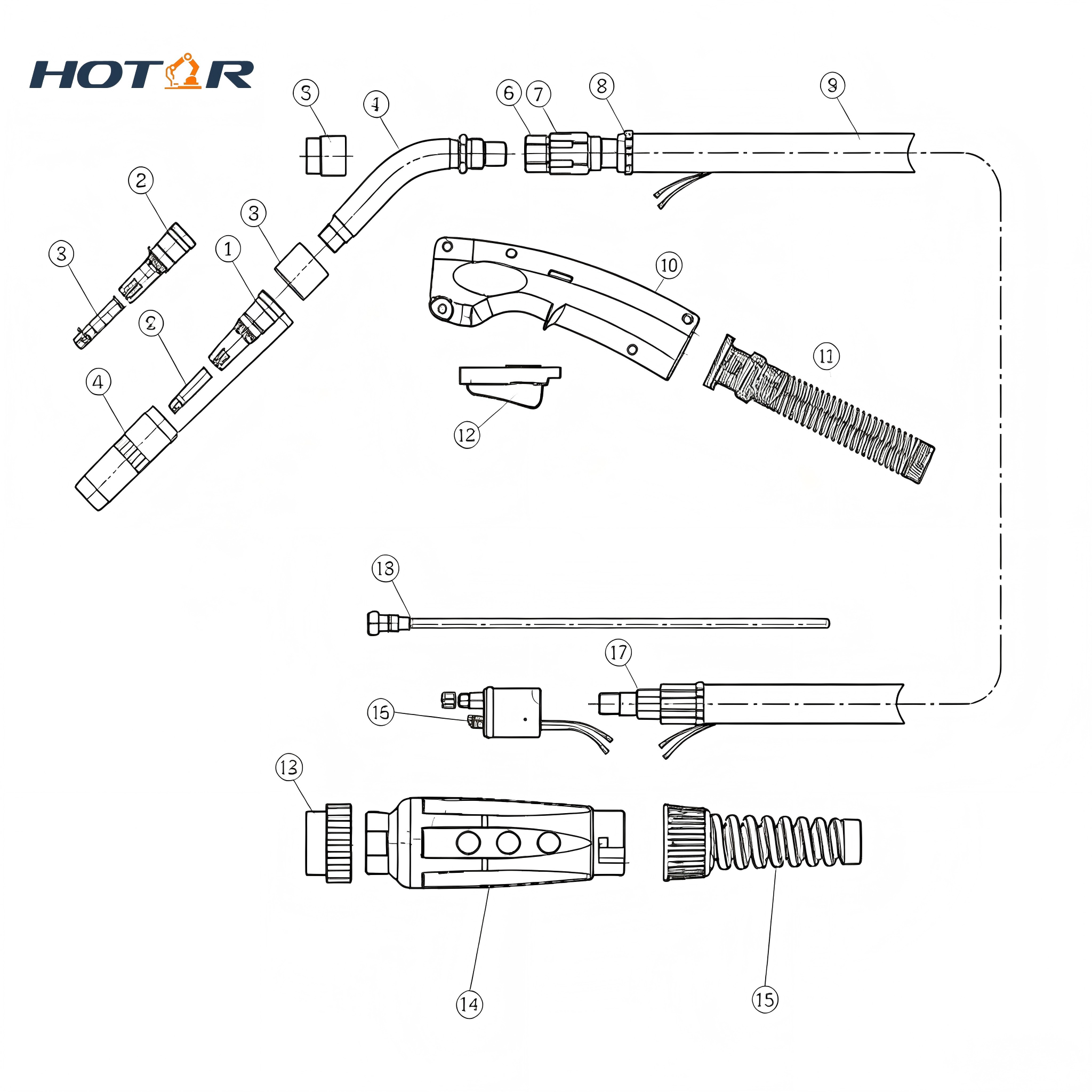

Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck, Insulator | |
1.4435 | Tip Holder |
2.R4423-R | Insulator |
3.4794 | Swan Neck |
4.B4780 | Torch Body Nut |
5.4408 | Front Handle With Screws |
6.4422 | Switch, Yellow |
7.HR4313B | Torch Body |
