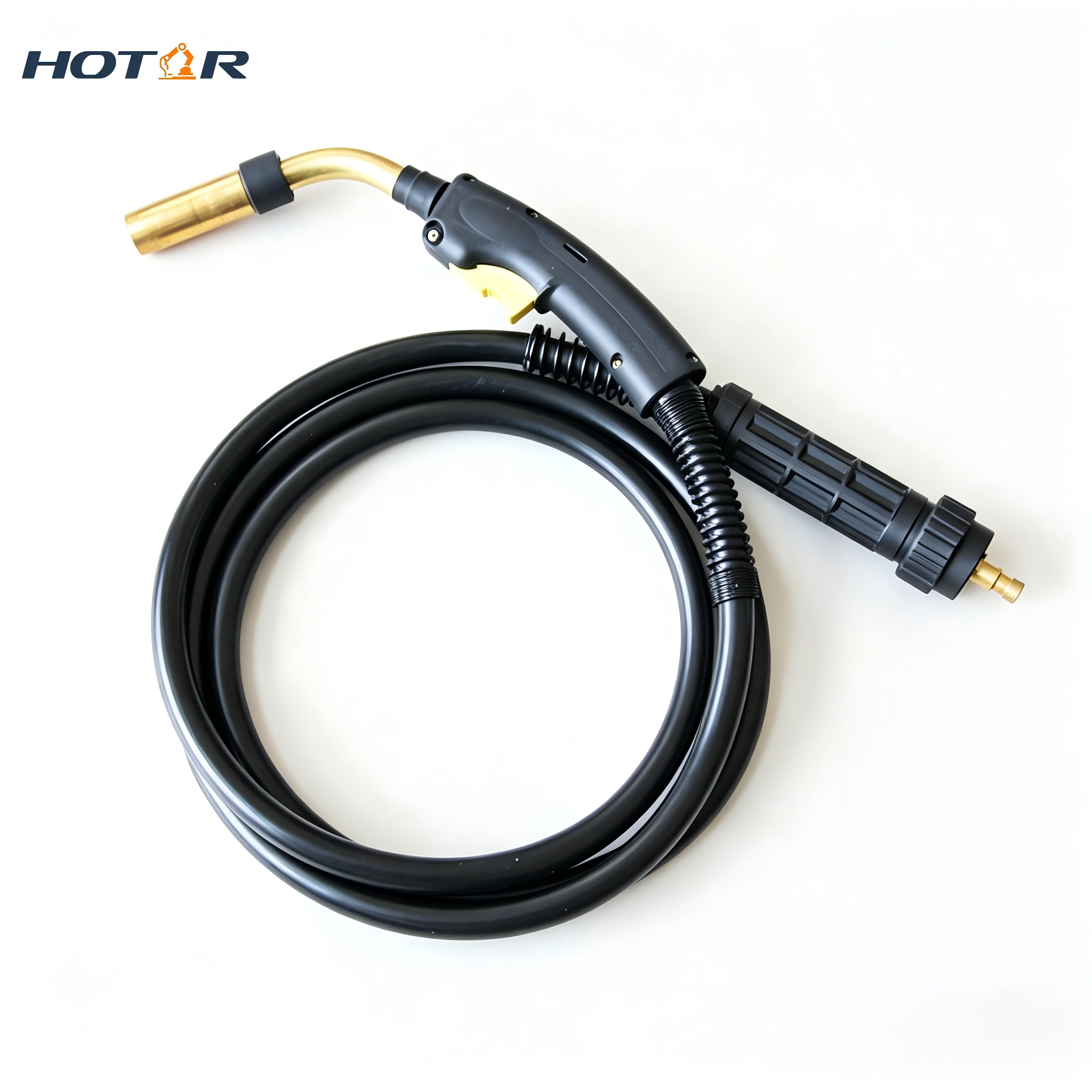

HRBN350A Air-Cooled Welding Torch
Description
Item | MIG/MAG BN350 Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 350A CO2/ 250A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.6mm |
Rear Connector | Bernard Connector, Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 torch nozzle | |
A4491 | Nozzle Conical ￠19mm, Brass |
A4492 | Nozzle Tapered ￠14mm, Brass |
Welding Contact tip / Torch tip | |
B7497 | Contact Tip E-CU 32*0.6mm |
B7488 | Contact Tip E-CU 32*0.8mm |
B7489 | Contact Tip E-CU 32*0.9mm |
B7496 | Contact Tip E-CU 32*1.0mm |
B7490 | Contact Tip E-CU 32*1.2mm |
Welding Torch Liner | |
C43015 | Black Steel Liner 0.6-0.8mm , 5m,Out Dia 4.1/1.3 |
C44115 | Black Steel Liner 0.8-1.2mm , 5m,Out Dia 4.8/1.6 |
C44215 | Black Steel Liner 1.2-1.6mm , 5m,Out Dia 4.8/2.0 |
C1506 | Blue Steel Liner 0.6-0.9mm,5m,Out Dia 4.1/1.3 |
C2503 | Yellow Steel Liner 1.0-1.2mm,5m,Out Dia 4.0/1.6 |
C4003 | Yellow Steel Liner 1.6mm,5m,Out Dia 4.6/2.0 |

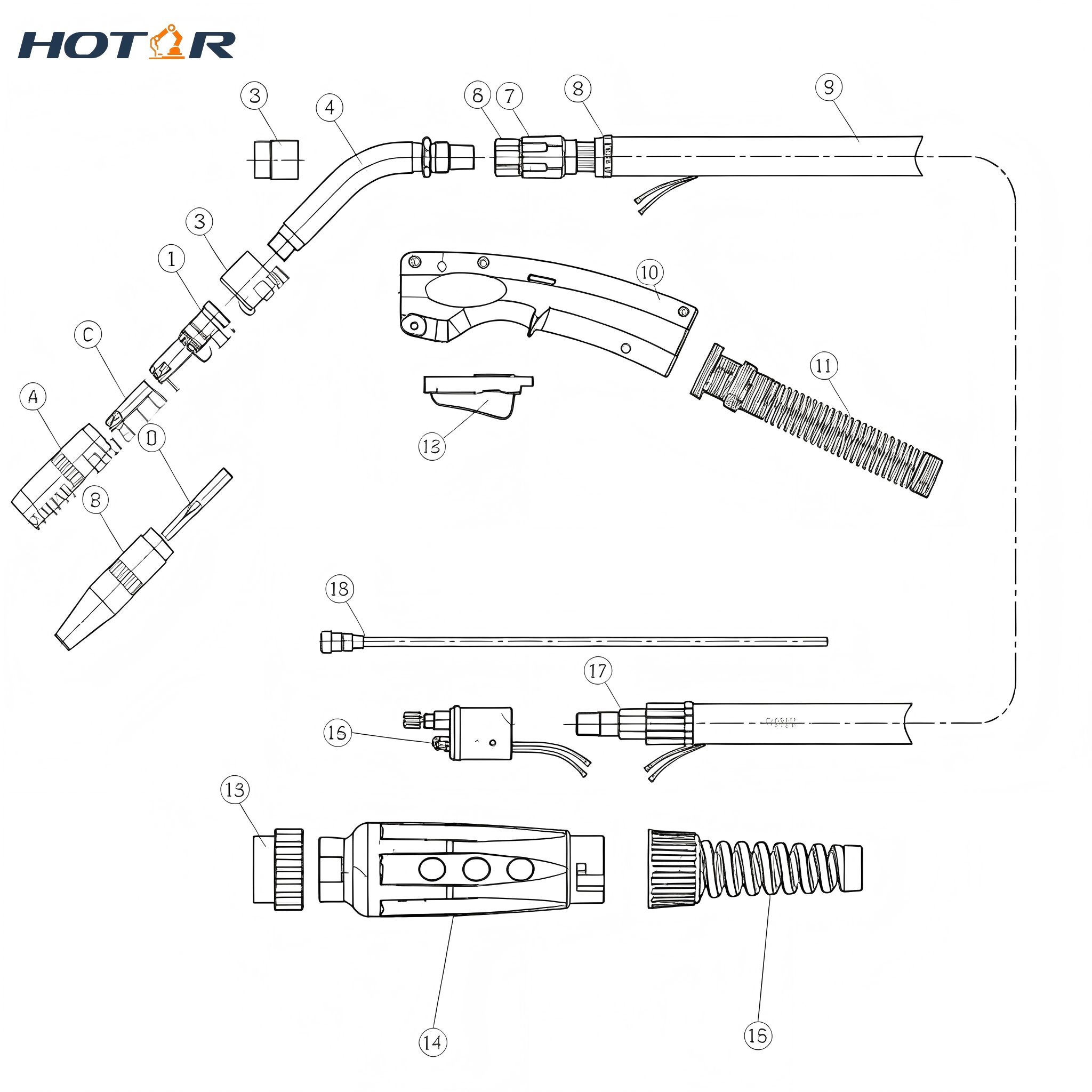

Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck, Insulator | |
D4435 | Tip Holder |
D4423 | Cap |
D4780 | Insulator For Hexagonal Nut |
D4790 | Swan Neck |
D4213B | End Fitting |
D4305 | Cone Nut |
D1780006 | Front Handle |
D5662 | Trigger |
