HRTW2 Air-Cooled
Description

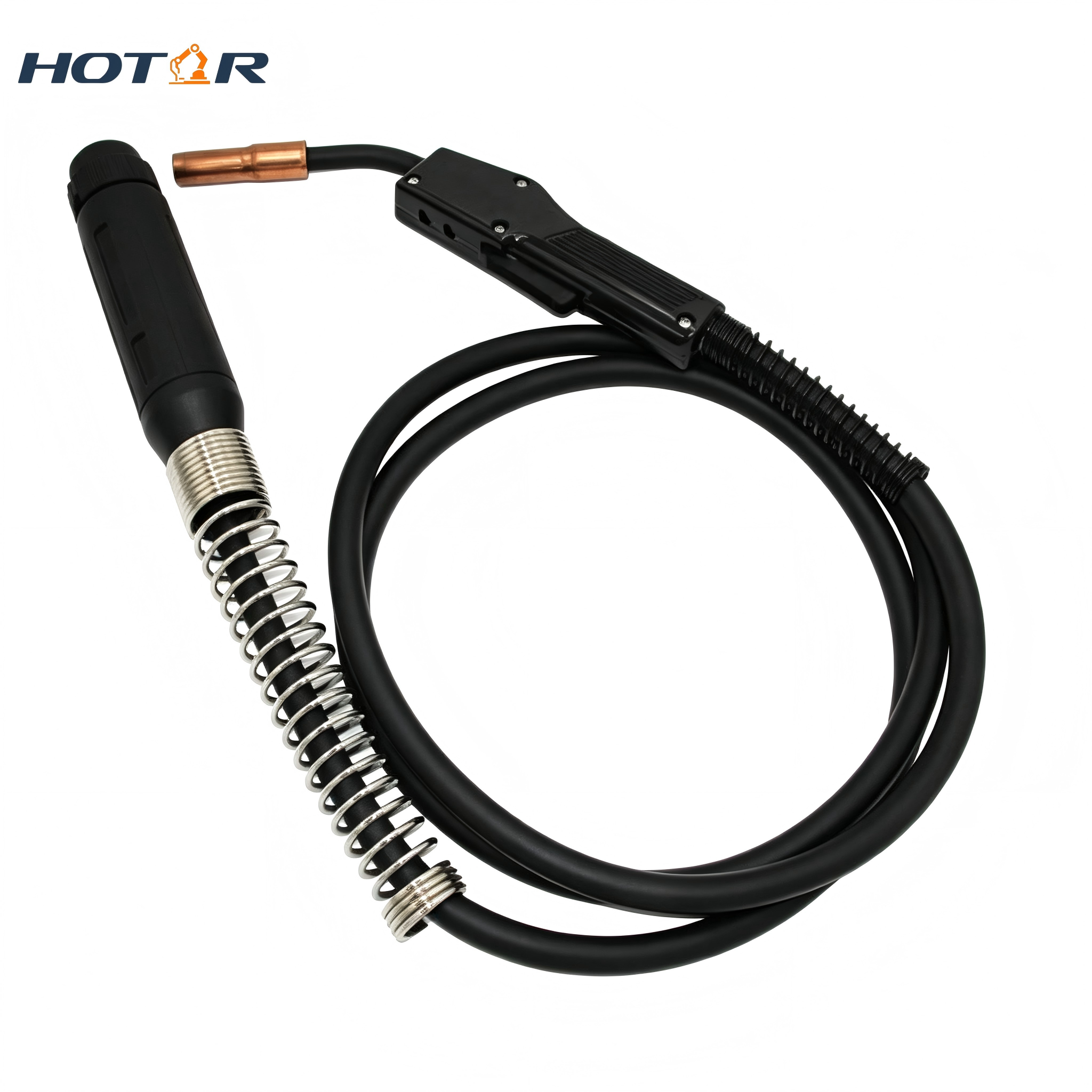

Item | MIG/MAG HRTW-2 Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 200A CO2/ 150A Mixed Gas , Duty Cycle 60%; Wire Diameter: 0.6-1.2mm |
Rear Connector | Tweco Connector, Euro Connector, Miller Connector, Lincoln Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
22-37-SS | Nozzle Tapered ￠9.5mm |
22-50-SS | Nozzle Conical ￠12.7mm |
22-62-SS | Nozzle Conical ￠15.9mm |
Welding Contact Tip / Torch Tip | |
14-23 | Contact Tip 1/4''-28UNF*0.6mm |
14-30 | Contact Tip 1/4''-28UNF*0.8mm |
14-35 | Contact Tip 1/4''-28UNF*0.9mm |
14-40 | Contact Tip 1/4''-28UNF*1.0mm |
14-45 | Contact Tip 1/4''-28UNF*1.2mm |
14-52 | Contact Tip 1/4''-28UNF*1.3mm |
14-116 | Contact Tip 1/4''-28UNF*1.6mm |
Welding Torch Liner | |
42-23-15 | Black Steel Liner 0.6mm,4.9m |
42-3035-15 | Black Steel Liner 0.8-0.9mm,4.9m |
42-3545-15 | Black Steel Liner 0.9-1.2mm,4.9m |
42-4045-15 | Black Steel Liner 1.0-1.2mm,4.9m |
42-3045-25 | Black Steel Liner 0.8-0.9mm,7.9m |
42-4045-25 | Black Steel Liner 1.0-1.2mm,7.9m |

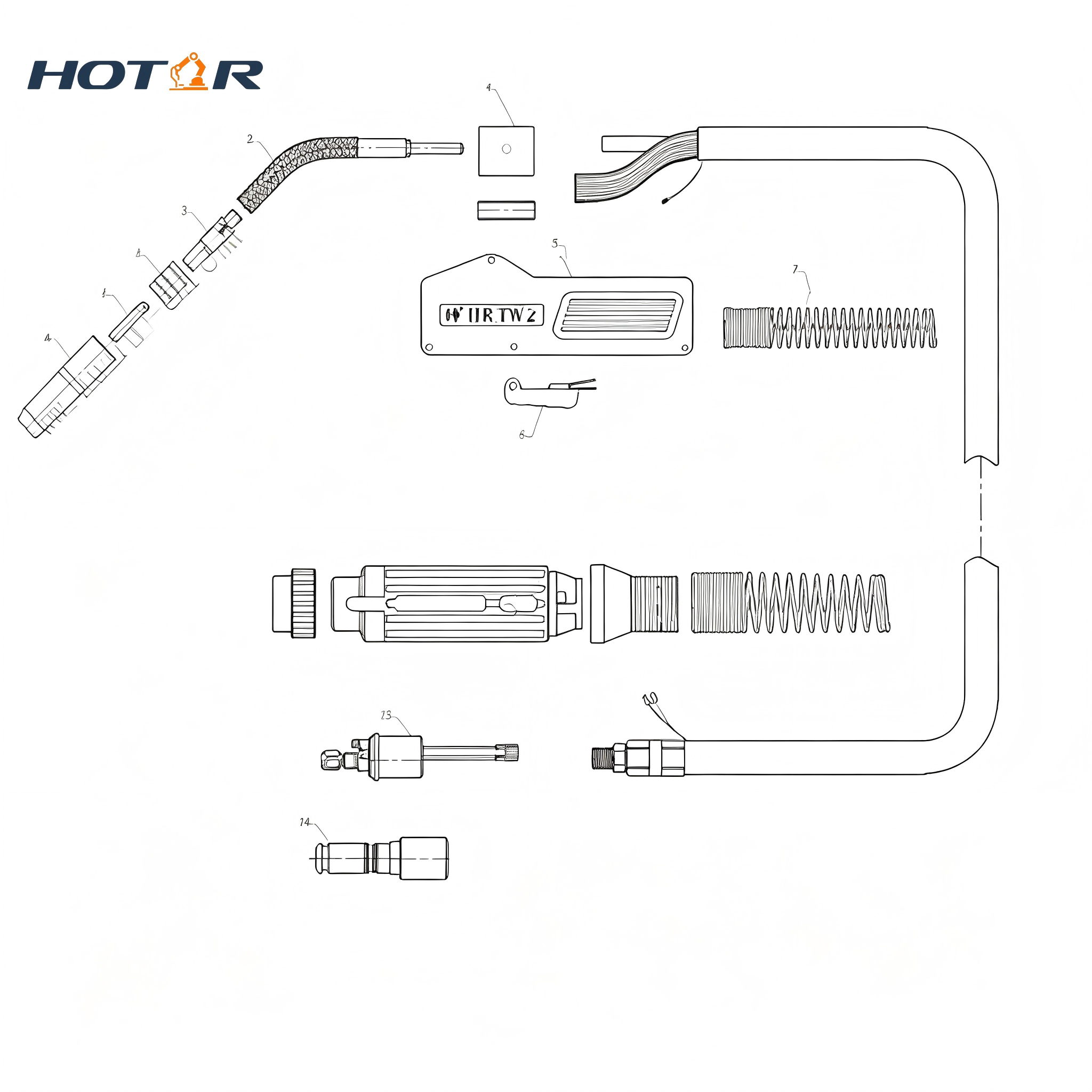

Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck, Switch, Connection Block | |
32 | Insulated |
52 | Gas Diffuser |
62A-45/60 | Swan Neck |
102 | Connection Block |
82 | Front Handle |
92C | Switch |
