hr15ak air-cooled welding torch for air-cooled welding torch for
Description

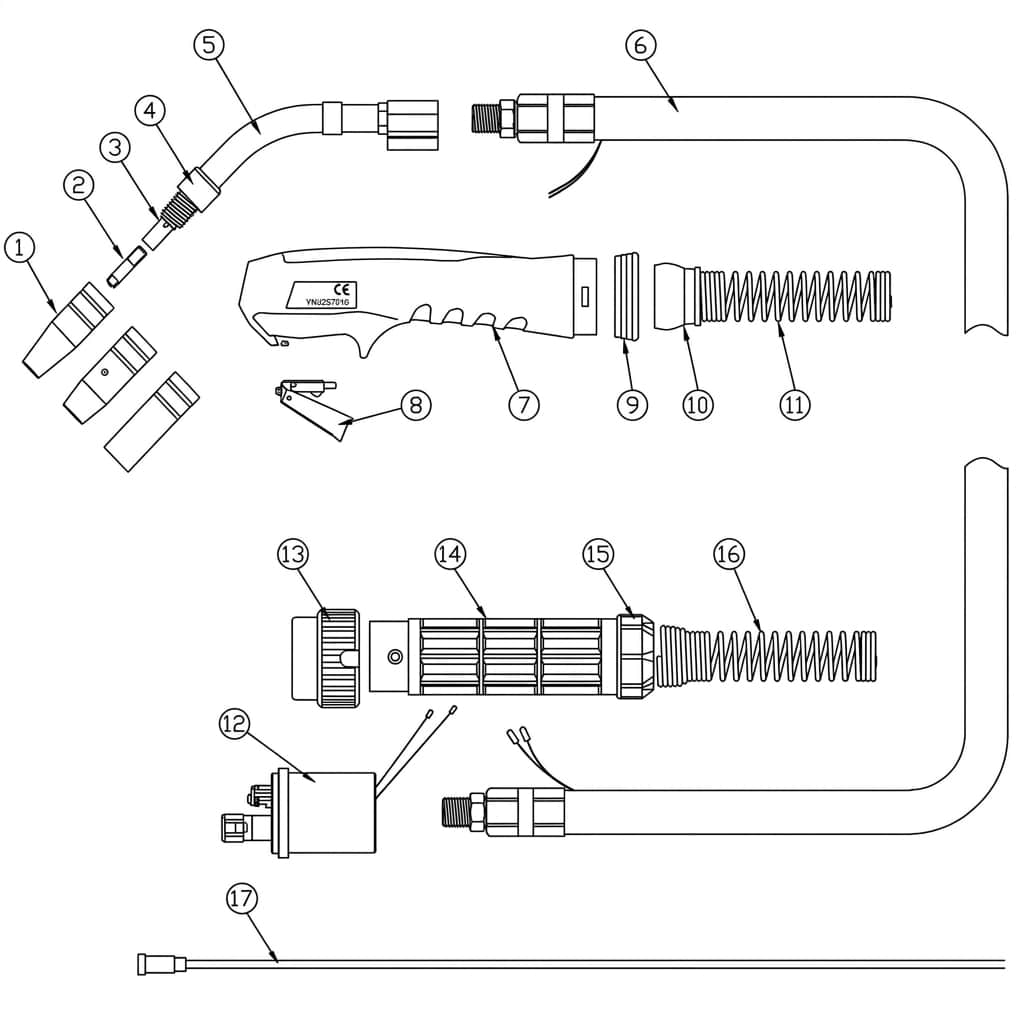

MIG/MAG HRMB15AK Air-Cooled CO2/Mixed Shielded Welding Torch
Item | MIG/MAG MB15AK Air-Cooled CO2/Mixed Shielded Welding Torch |
Rating | 180A CO2/ 150A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.6-1.0mm |
Rear Connector | Euro Connector |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Welding Gas Nozzle/ CO2 Torch Nozzle | |
A1501 145.0041 | Nozzle Cylindrical |
A1502 145.0075 | Nozzle Conical |
A1503 145.0123 | Nozzle Tapered |
A1504 | Nozzle Bottle |
A1505 145.0168 | Nozzle Spot Welding |
Welding Contact Tip / Torch Tip | |
B1501 140.0008 | Contact Tip E-CU M6*25*0.6mm |
B1502 140.0059 | Contact Tip E-CU M6*25*0.8mm |
B1503 140.0177 | Contact Tip E-CU M6*25*0.9mm |
B1504 140.0253 | Contact Tip E-CU M6*25*1.0mm |
Welding Torch Liner | |
C1501 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
C1502 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
C1503 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
C1504 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
C1505 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
C1506 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
D1501 002.0078 | L/H Tip Holder |
D1502 002.0058 | Spring Support |
D1503 002.0050 | Insulator |
D1504 002.0017 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only
