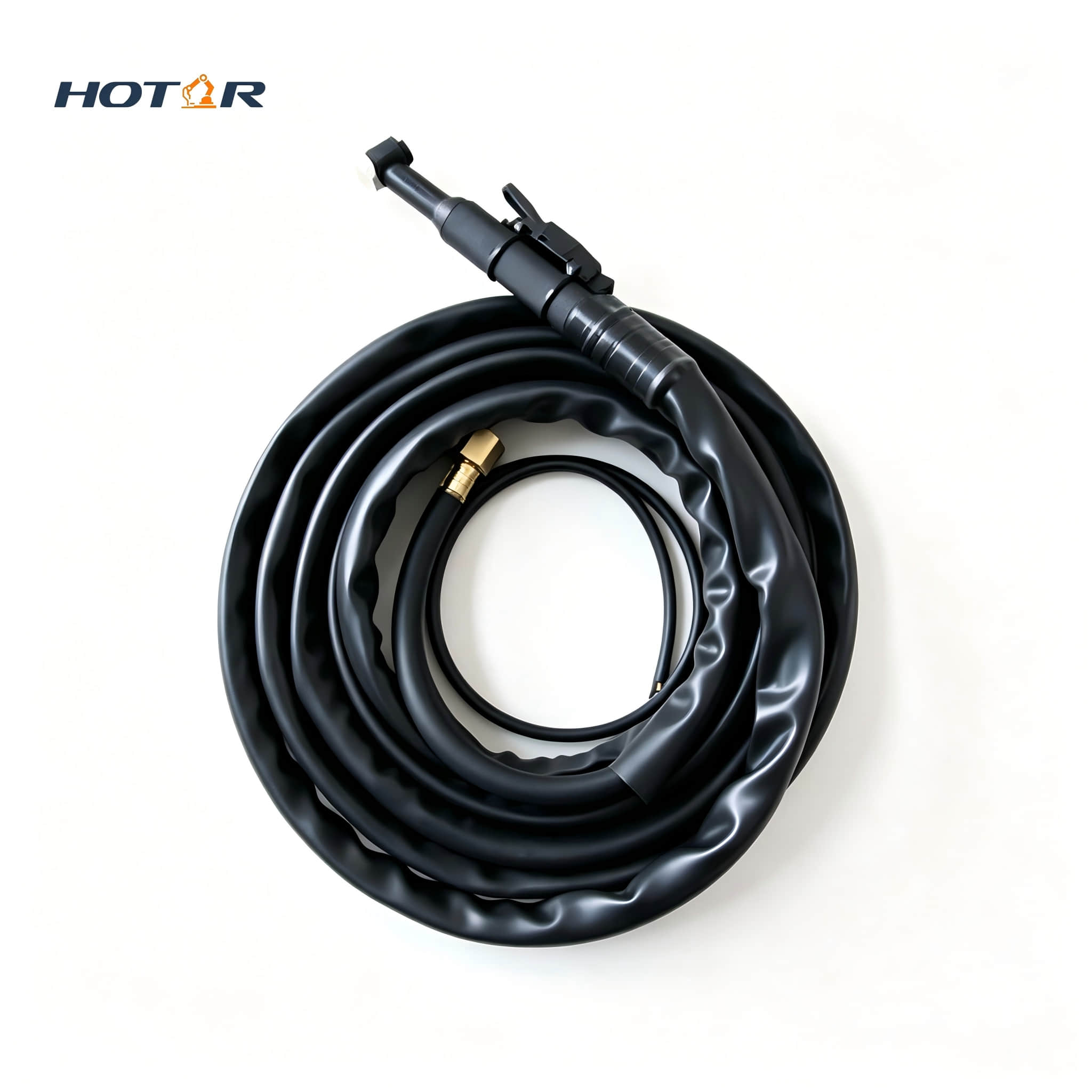

WP-9 Air-Cooled Argon Arc Welding Torch
Description
TIG WP-9 Gas Cooled Tungsten Argon Arc Welding Torch
Item | TIG WP-9 Gas Cooled Tungsten Argon Arc Welding Torch |
Rating | 125A DC, 80A AC, Tungsten Diameter: 0.5-1.6mm |
Rear Connector | M12*1, 10-25 connector, 3/8''-24 UNF RH, 5/8''-18 UNF RH |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Collet | |
13N20 | Collet Dia.0.5mm |
13N21 | Collet Dia.1.0mm |
13N22 | Collet Dia.1.6mm |
Collet Body | |
13N25 | Collet Body Dia. 0.5mm |
13N26 | Collet Body Dia. 1.0mm |
13N27 | Collet Body Dia. 1.6mm |
Alumina nozzle/ Ceramic Nozzle | |
13N08 | Std. Ceramic Cup Dia. 6mm |
13N09 | Std. Ceramic Cup Dia. 8mm |
13N10 | Std. Ceramic Cup Dia. 10mm |
13N11 | Std. Ceramic Cup Dia. 11mm |
13N12 | Std. Ceramic Cup Dia. 13mm |
13N13 | Std. Ceramic Cup Dia. 16mm |
Gas Lens Collet Body | |
45V41 | Gas Lens Body Dia. 0.5mm |
45V42 | Gas Lens Body Dia. 1.0mm |
45V43 | Gas Lens Body Dia. 1.6mm |

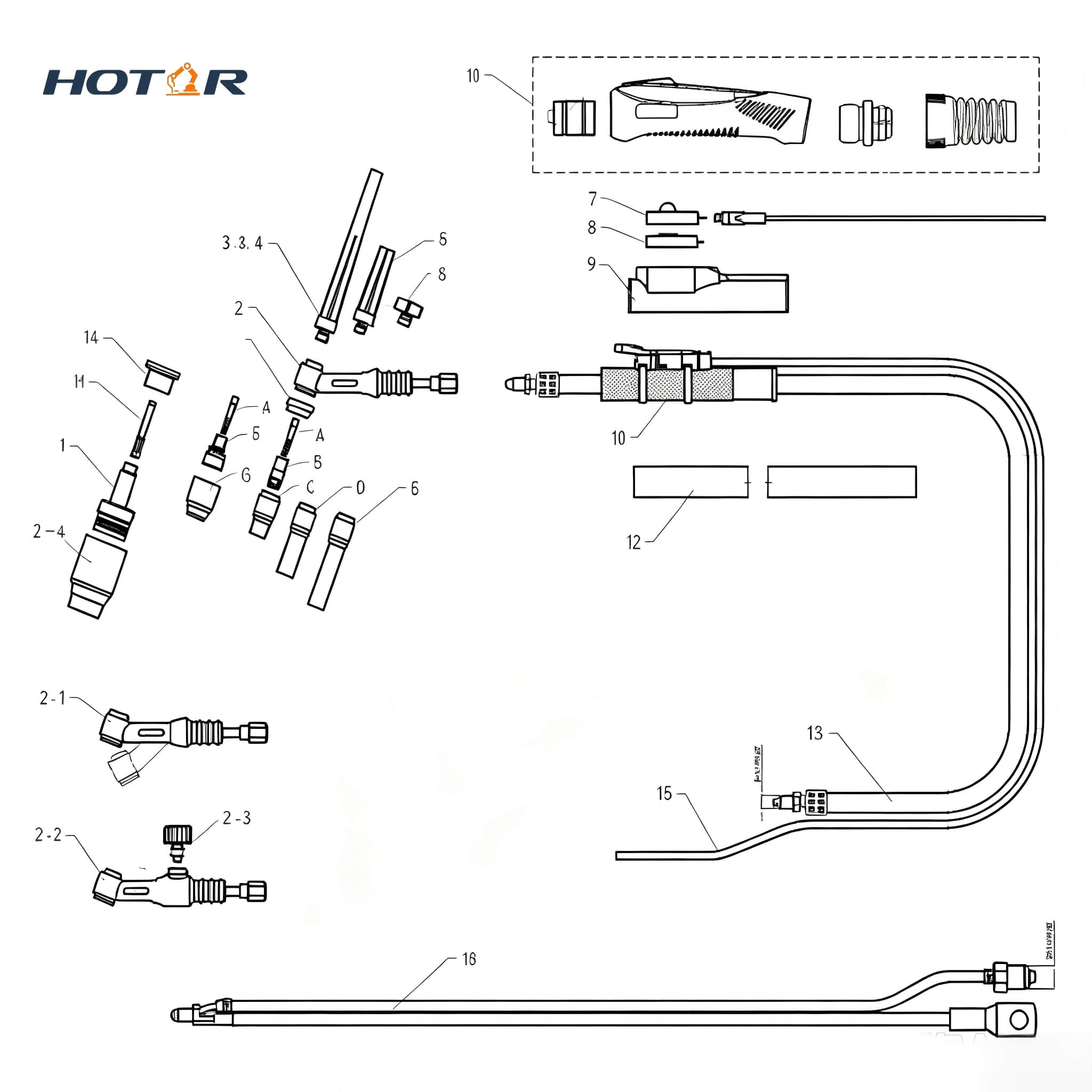

CONSUMABLES PARTS | |
598882 | Heat Shield Cup Gasket |
WP-9 | Torch body |
98W77 | Back Cap " O " Ring |
41V24 | Back Cap Long |
41V35 | Back Cap Medium |
41V33 | Back Cap Short |
950 | Micro Switch Bulbous Button |
950F | Micro Switch Flat Button |
950-40 | Bulbous Micro switch C/W 4mt 2 Core Cable |
950-80 | Bulbous Micro switch C/W 8mt 2 Core Cable |
RDZ0591 | Switch Boot |
607664 | Switch Retaining Boot |
105Z55 | Handle |
0315071 | Insulation Boot |
54N63-20 | Heat Shield Cup Gasket |
WP-9V | Torch Body With Valve |
VS-2 | Valve Stem |
WP-9FX | Flexible Torch Body |
WP-9P | Straight Torch Body |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
