Dexterous Hand CNC Machining Customization
Description
Detailed Product Description：
The dexterous hand features a compact internal space and a large variety of parts, with demanding requirements on assembly tolerance, motion stability, and weight control.
We provide precision CNC part customization for dexterous hands, supporting multi-variety, small-batch prototyping and prototype iteration.
Machinable Parts
A complete set of dexterous hand structural parts, machined from a single drawing set for consistent assembly and stable finger motion.

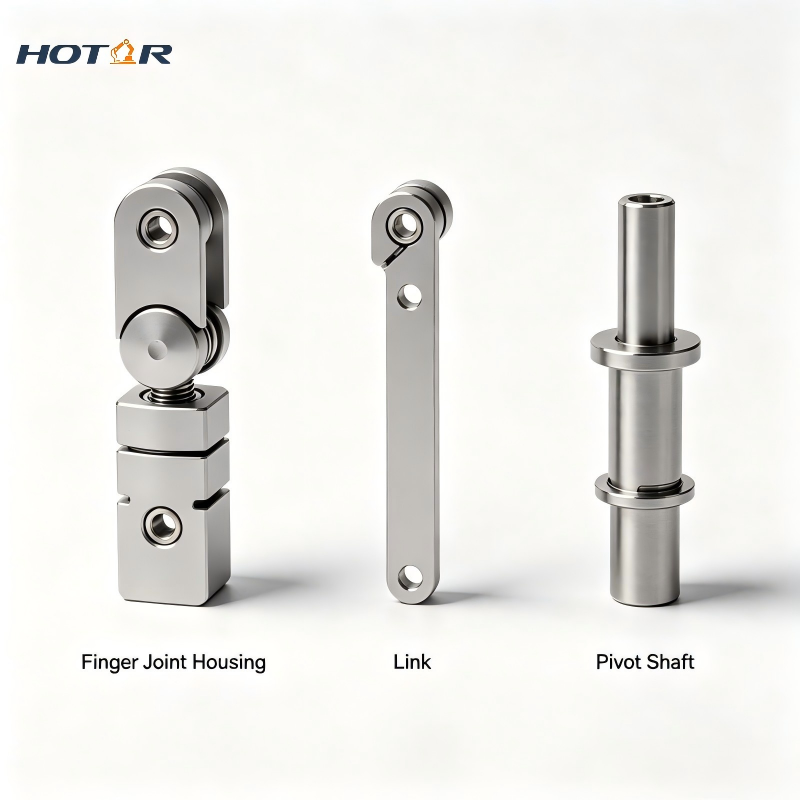

1：Finger Joint Housing（Multi-segment housing with joint bores）
2：Link（Slender links with hinge mounting holes）
3：Pivot Shaft（Stepped shafts with retaining-ring grooves）

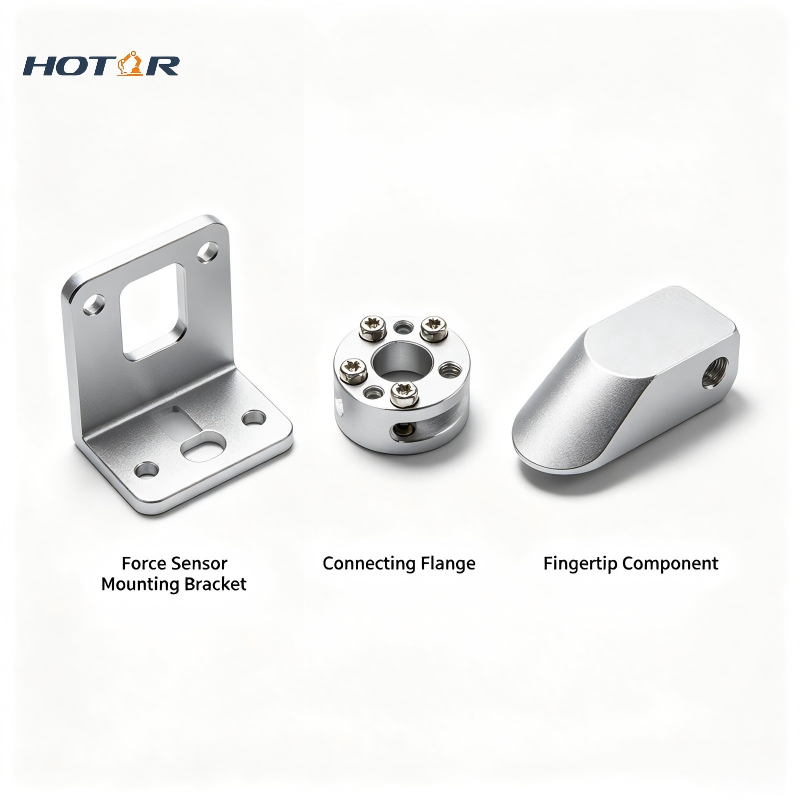

4：Force Sensor Mounting Bracket（Lightweight brackets with locating holes）
5：Connecting Flange（Compact flanges with bolt-hole patterns）
6：Fingertip Component（Contoured fingertip structures）
Tolerance Capability
Standard Tolerance | ±0.05 mm |
Precision Tolerance | ±0.01 mm |
Special Tolerance | Down to ±0.002 mmCustom tolerances executable per customer supplied drawings. |
Machinable Materials
Material | Availability | Key Features |
6061 Aluminum Alloy | ✅ Commonly Used | Lightweight, excellent machinability |
7075 Aluminum Alloy | ✅ Commonly Used | High strength, ideal for load-bearing structures |
Stainless Steel | ✅ Available | Wear-resistant, high strength |
Copper | ✅ Available | Excellent electrical and thermal conductivity |
PEEK / POM | ✅Available | Insulating, high-temperature resistant |
Other Materials | ✅ Customizable | Contact us with your specific material requirements |
Delivery Process
Step 01: Drawings Submitted
Customer provides part drawings in CAD, STEP, or IGS format.
Step 02: Evaluation
We assess material, manufacturing process, tolerance, and order quantity.
Step 03: Quotation & Lead Time
You receive a detailed quotation with confirmed delivery lead time.
Step 04: Sample & Production
Sample machining or small-batch production begins once the order is confirmed.
Step 05: Inspection & Finishing
Dimensional inspection and surface treatment are carried out to specification.
Step 06: Packaging & Shipping
Parts are carefully packaged and shipped to your destination.
