Reducer CNC Machining Customization
Description
The reducer is a high-precision transmission module in a robot's joint system, where structural parts such as the housing, flange, base, and planet carrier directly influence assembly accuracy and transmission stability.
We provide CNC machining services for reducer structural parts, meeting the requirements of high-precision assembly and small-batch prototyping.
Machinable Parts
A complete set of reducer structural parts, machined from a single drawing set for consistent assembly and transmission performance.

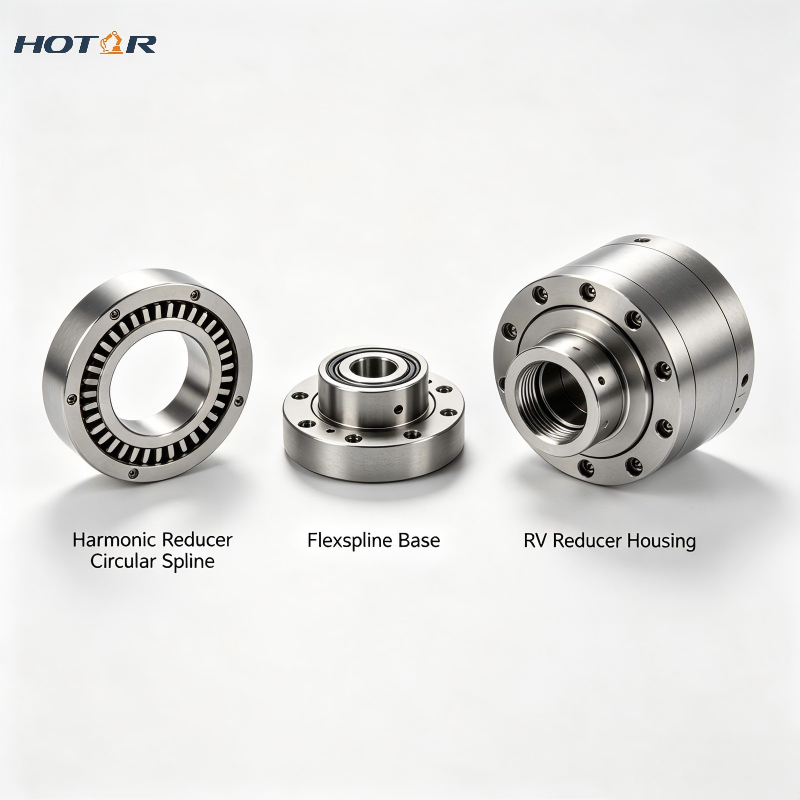

1：Harmonic Reducer Circular Spline（Precision internal-tooth ring for harmonic drives）
2：Flexspline Base（Locating base for flexspline mounting）
3：RV Reducer Housing（Rigid housing with flange interfaces）

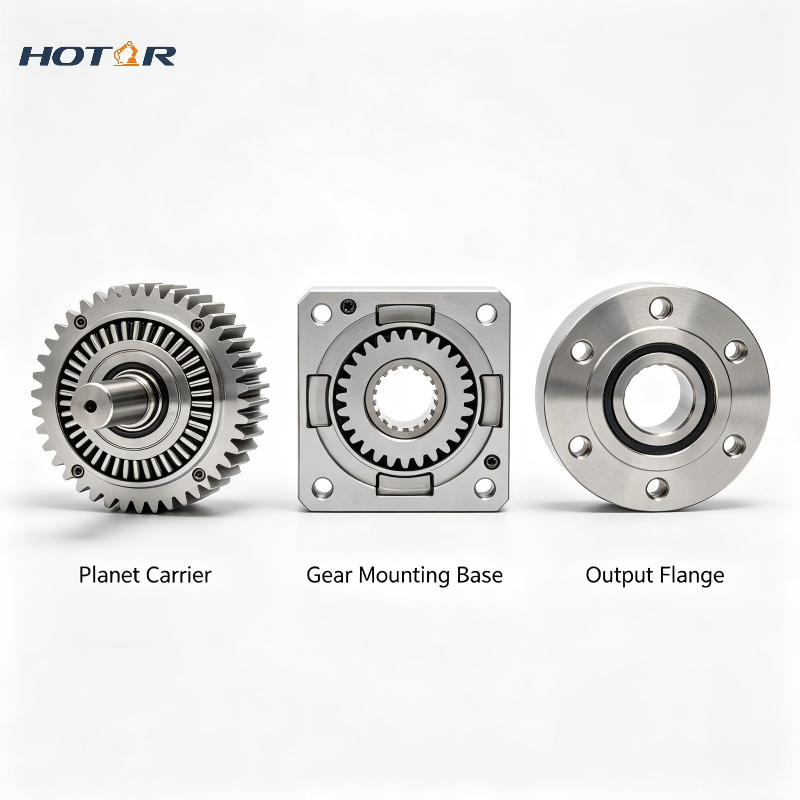

4：Planet Carrier（Carrier with planet gear shafts）
5：Gear Mounting Base（Mounting seats with locating slots）
6：Output Flange（Flanged output with bolt-hole patterns）
Tolerance Capability
Standard Tolerance | ±0.05 mm |
Precision Tolerance | ±0.01 mm |
Special Tolerance | Down to ±0.002 mmCustom tolerances executable per customer supplied drawings. |
Machinable Materials
Material | Availability | Key Features |
6061 Aluminum Alloy | ✅ Commonly Used | Lightweight, excellent machinability |
7075 Aluminum Alloy | ✅ Commonly Used | High strength, ideal for load-bearing structures |
Stainless Steel | ✅ Available | Wear-resistant, high strength |
Copper | ✅ Available | Excellent electrical and thermal conductivity |
PEEK / POM | ✅Available | Insulating, high-temperature resistant |
Other Materials | ✅ Customizable | Contact us with your specific material requirements |
Delivery Process
Step 01: Drawings Submitted
Customer provides part drawings in CAD, STEP, or IGS format.
Step 02: Evaluation
We assess material, manufacturing process, tolerance, and order quantity.
Step 03: Quotation & Lead Time
You receive a detailed quotation with confirmed delivery lead time.
Step 04: Sample & Production
Sample machining or small-batch production begins once the order is confirmed.
Step 05: Inspection & Finishing
Dimensional inspection and surface treatment are carried out to specification.
Step 06: Packaging & Shipping
Parts are carefully packaged and shipped to your destination.
